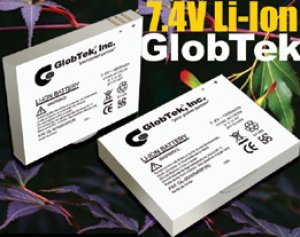

Introducing a Li-Ion Prismatic battery pack rated 7.4V, 1900 mAh consisting of 2 Panasonic CGA103450A 103450 sized cells packaged in a custom enclosure with protection and fuel gauge circuitry included. The Protection circuitry is designed by GlobTek based on a Seiko S-8232AKFT-T2 control chip while the fuel gauge and management is done by TI BQ27000 based circuits. The Custom frame is made of a Poly Carbonate/ABS mixture, custom contacts made of nickel, and finally sealed in an ET label material. The Battery pack has onboard protection from Short Circuit, Over voltage, Over current, Under Voltage, Overcharge, Over discharge, Over Temperature. The battery shall deliver a minimum of eighty percent (80%) of its rated capacity after the first three hundred (300) cycles. UL/cUL is pending. UN38.3 report is available upon request. Priced from $30/each in mass-production quantities. Made in USA option available upon request.
