IP68 Rated Encapsulated Waterproof power supply series meets EN55022 for CE and EMC from 3VDC to 56VDC output at 20W, Model GTM93021-P2

IP68 Rated Encapsulated Waterproof power supply series meets EN55022 for CE and EMC from 3VDC to 56VDC output at 20W, Model GTM93021-P2 IP68 Rated Encapsulated Waterproof power supply series meets EN55022 for CE and EMC from 3VDC to 56VDC output at 20W, Model GTM93021-P2 IP68 Rated Encapsulated Waterproof power supply series meets EN55022 for CE and EMC from 3VDC to 56VDC output at 20W, Model GTM93021-P2

Continuing to pursue its commitment to quality products and service, GlobTek, a world-class provider of power supplies and power electronic solutions, now has CE/EMC Certificates and reports for 3-56V output members of the GTM93021-P2 Series to the latest published European standards.

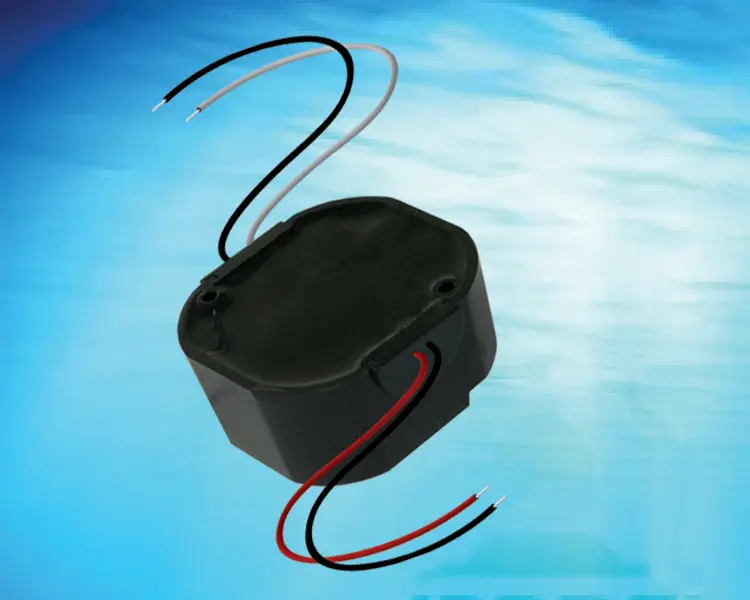

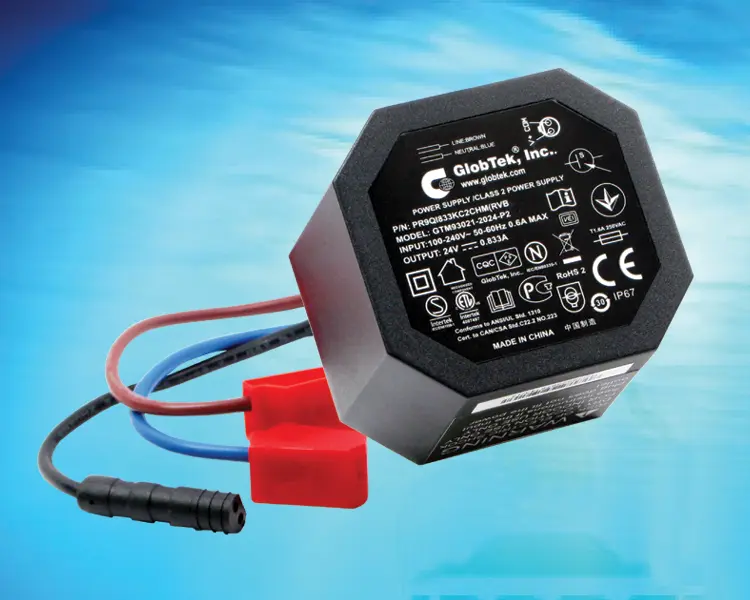

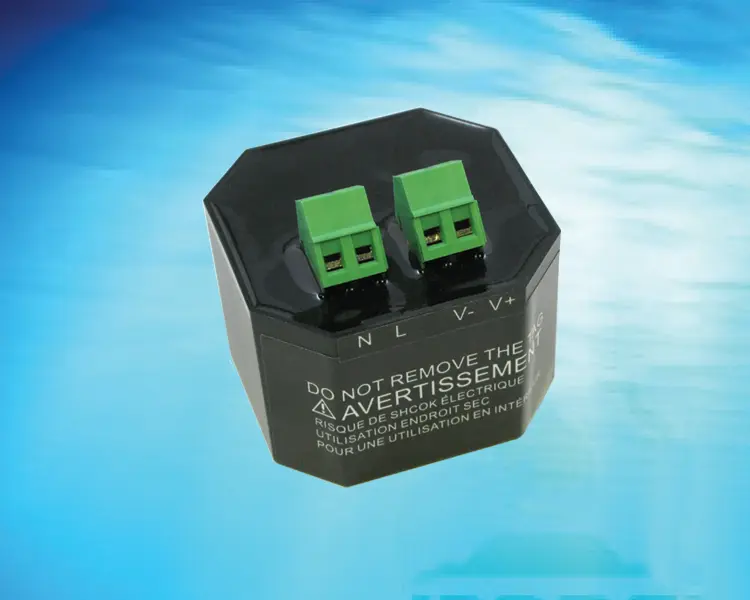

The miniature ITE(60950-1) universal input switching power supply model GTM93021 is available in an encapsulated/potted housing for use in standard 1-Gang Electrical Wall work box such as North American UL-514-A, UL-514-B, UL-514-C or German “Hohlwanddose” per VDE0606 . The model is provided as Class 2, with 2 input wires and 2 output wires factory installed with stripped ends for field wiring.

Popular applications for GlobTek’s waterproof and weather proof series power supplies are Electronic Flush Systems, Electronic Sensor Faucets, Electric and Electronic Valves, Lighting and Signage, Instrumentation and metering applications, Emergency Response equipment, and Intelligent battery charging of mobile equipment.

The tiny ITE (60950-1) power supply has an input from 90-264VAC 50-60Hz and a factory configurable output of 12VDC to 56VDC output with a max power of 20W continuous output. This product complies with North American Energy Star, Canadian NRCAN, and other worldwide requirements for Level V efficiency compliance and is produced in an ISO 9001/13485/14001 certified facility.

This Family features Regulated output with very low ripple, Built-in over current, Short circuit, Over current, and thermal protection as well as low leakage, low ripple, and high efficiency. The product is suitable for most applications requiring DC power and common applications include medical devices, portable medical treatment and monitoring equipment and instruments, Hospital equipment and fixtures, equipment, and as a power source for Li-Ion battery chargers.

Customized Bespoke enclosure colors, housing designs, output cord types and lengths, as well as customized packaging available upon request.

GTM93021 is certified IP68. According to BS EN 60529 and IEC 529, IP68 signifies that the ITE (60950-1) power supply is Totally dust tight as well as Protected against prolonged effects of immersion under pressure. IP68 test report and certification available upon request.

The power supply can be supplied with customer designated standard or custom output plugs, many of which are stocked at GlobTek New Jersey USA and Suzhou China locations.

The power supplies comply with IEC 60950-1 2nd edition or IEC60601-1 3rd edition and have certifications by UL (North America), C-Tick (Australia/New Zealand), Iram (Argentina), BSMI (Taiwan), CB (Worldwide), CCC (China), Demko (Europe), eK (Korea), NRCAN (Canada), Spring (Singapore), SIQ (Europe), Gost (Russia), Singapore (PSB), and UkrSEPRO (Ukraine). They also comply with Canadian Nrcan efficiency requirements as well as FCC/VCC/CE emc requirements.

Made in USA or China option available. Local China to China delivery available upon request.

5 year warranty
